Otam 85 GTS set for the big stage

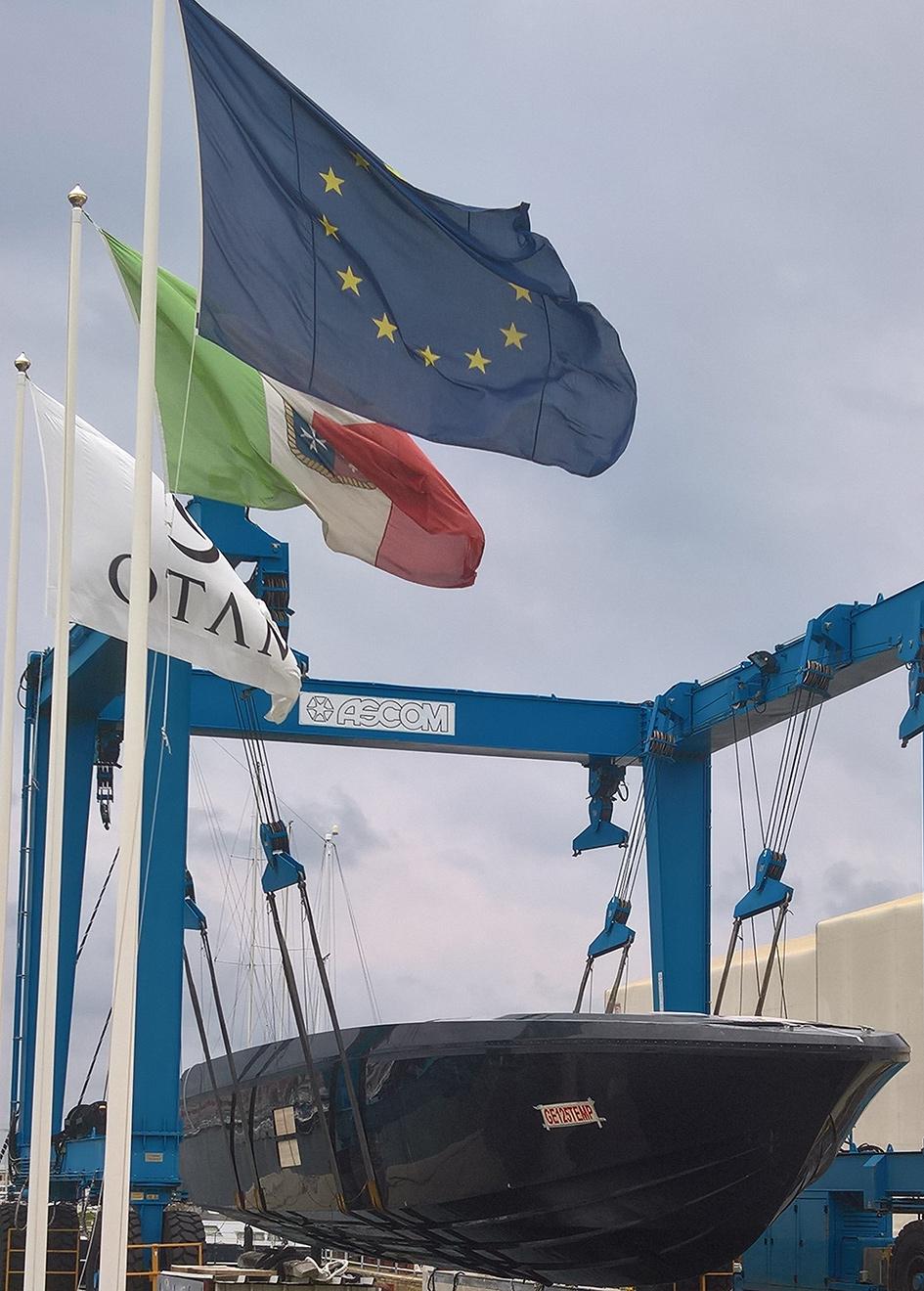

Otam’s latest fast planing yacht, the 26 metre Otam 85GTS, has reached the halfway point in construction. The Italian yard revealed that the hull and deck had been assembled and MTU 16v M 94 engines installed. The yacht’s electrical and hydraulic systems are in progress while work is also well underway on the interior manufacturing. Manufacturing has also begun on the yacht’s custom hardtop. The yard revealed it had constructed a 1:1 mock-up of the structure and curved windscreen that will be used to create the mould.

Otam 85GTS

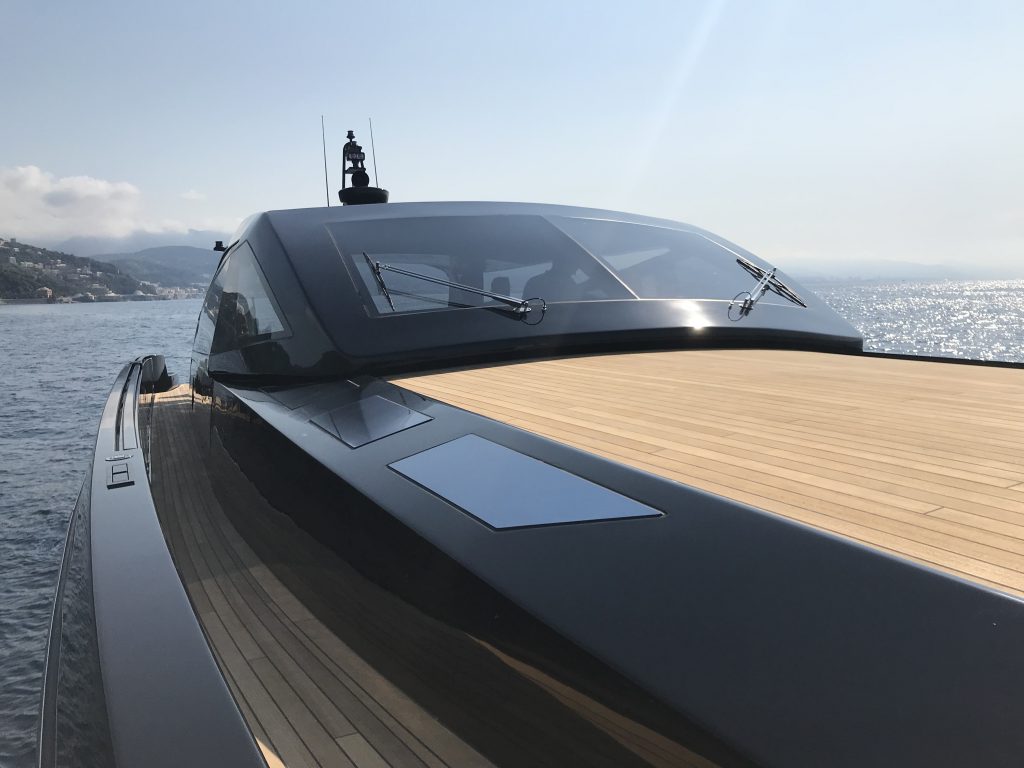

Sales and communication manager Matteo Belardinelli explained: “The aesthetics of the hardtop and windscreen are extremely important for the owner. So instead of relying on 3D modelling, we decided to build a mock-up out of wood to get the proportions exactly right.” Construction remains on track, the yard said, with the yacht’s delivery scheduled to take place in time for the 2019 summer season. The yacht will make her international debut at the 2019 boat shows.

Otam 85GTS

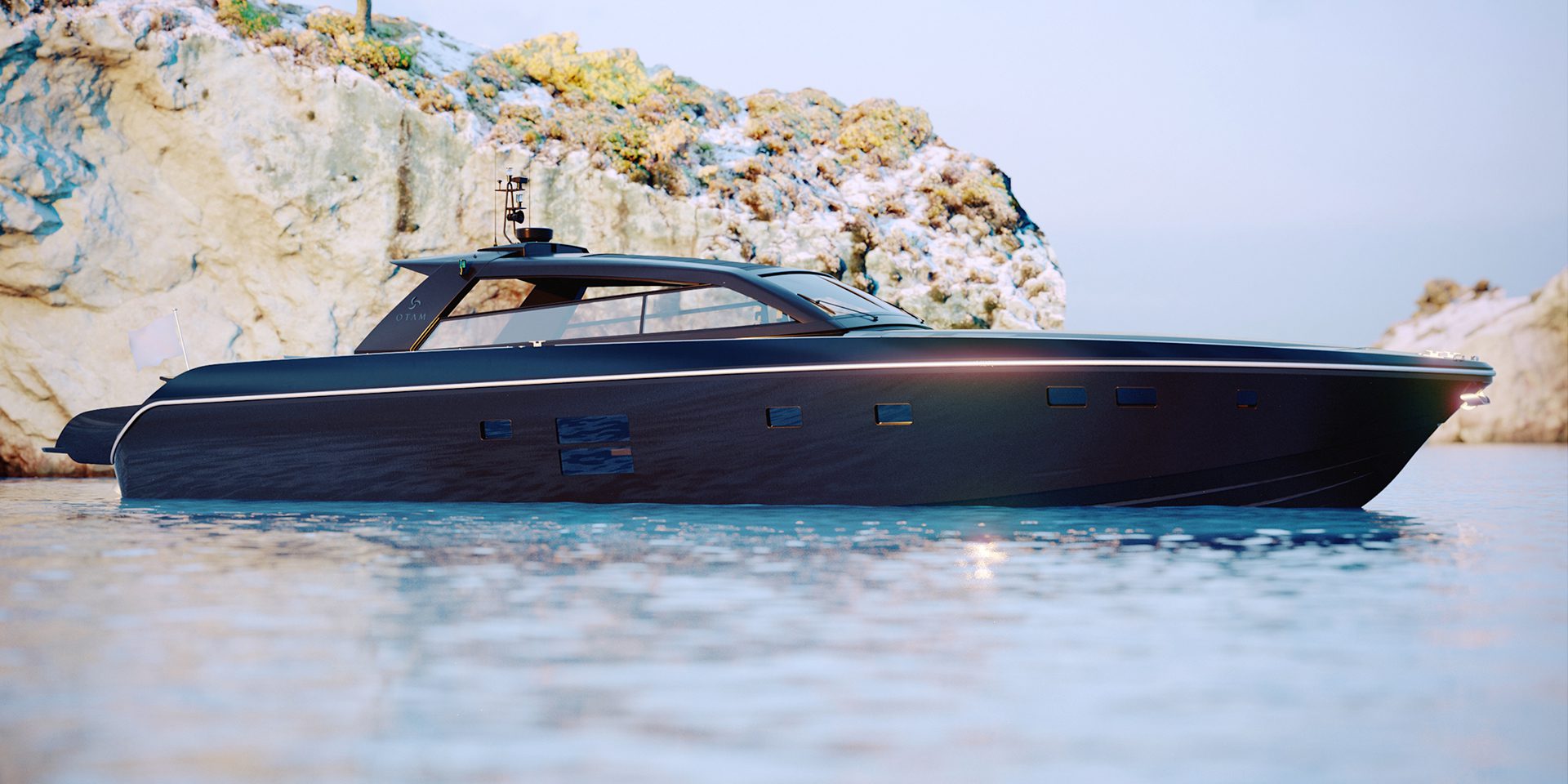

The all-new project, which was sold in May this year, features interior and exterior design detailing by French architect Joseph Dirand. The yacht will feature ample al fresco lounging space fore and aft and include an open transom leading down to a swim platform. A semi-open fly deck will also provide seating and dining facilities. The futuristic, supercar-inspired profile of the Otam 85′ GTS has drawn much attention along with its promise of serious performance attributes.

Otam 85GTS

The Otam 85GTS will have the performance to match its sporty styling, with a twin 2,600hp MTU 16V set-up for a top speed of 45 knots and cruising speed of 38. The new build Otam 85′ GTS features a number of design solutions and customisations that set it apart from others in the Otam fleet. The aesthetics are unique, but certain elements have been preserved to maintain the Otam DNA.

85 GTS Specifications:
LOA – 25.85 m (84.8ft)
Waterline Length – 23.95 m
Beam – 6 m
Displacement – 67 t loaded 57 t unloaded
Fuel Capacity – 8000 l
Water Capacity – 1000 l
Accommodation – four guests in two cabins, six guests in three cabins, or eight guests in four cabins, two crew in one cabin
Engines – 2 x MTU M96L 2600hp, 2 x Cats C32A 1925hp, 3 x Volvo D13 1000hp
Propulsion – Arneson ASD 15L surface drives, or triple Volvo IPS1350 with Volvo 1000hp engines
Speed – 45 knots max 40 knots cruise with MTU 2600hp and surface drives, 40 knots max 34 knots cruise with Cats 1925hp, 38 knots max 32 knots with triple Volvo 1000hp and IPS pod drives
Range – 350 nm at fast cruise
Project – Umberto Tagliavini for lines, Joseph Rirand for interior
Certification – RINA CE A

Otam Yachts
